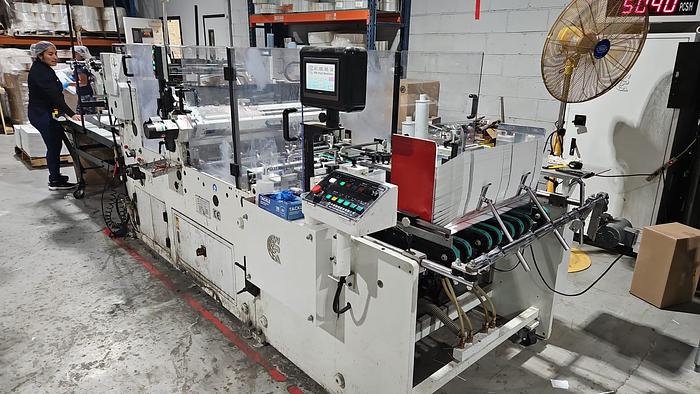

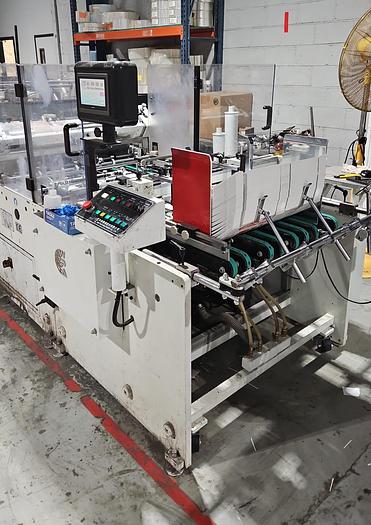

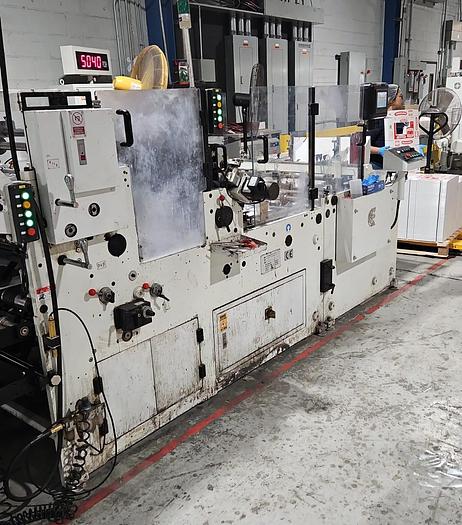

WINPAK WPA 1000DSV WINDOW PATCHER MFG 2018

WINPAK WPA 1000DSV WINDOW PATCHER MFG 2018

orCall +1 215-664-6016

Description

2018 WPA-1000DSV Window Patcher

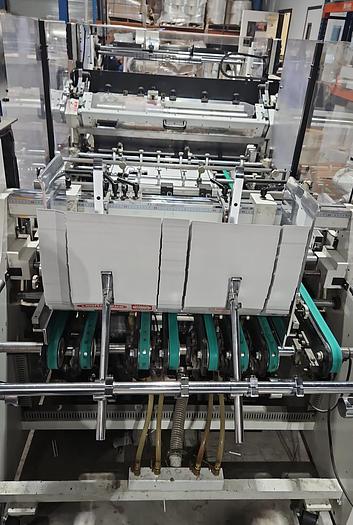

Servo Motor Driven Feeder Timing Belt System

Servo Motor Driven Rotary Knife Film Cutting System

Timed Delivery Conveyor Belt for Batch Counting

Vacuum Suction Belts in Delivery Section

Easy adjustment for running 1up or 2up position

Special treatment of the film cylinder to minimize film scratching

30mm Main machine side frames for increased machine stability

Standard suction belt to hold the blank in synchronized position while applying glue

Photo sensor detector automatically controls the glue roller to lift off when blank is not fed

The glue station slides out for easy cleaning and access to the rollers

The gluing rollers adjust forward and backwards, left and right for easy positioning and registration of substrate

Blank Length: 100mm ~ 710mm, Blank Width: 80mm ~ 480mm

Film Length: 38mm ~ 520mm, Film Width: 30mm ~ 400mm

Film Thickness: 0.03mm~0.20mm (Straight Preparation)

Feed Material: Cardboard, E-flute Corrugated Cardboard

Film Roll Specification: 400mm (16”) Roll, 3” Core

Max Working Speed: Length over 330mm: 300 sheets/min

Length less than 330mm: 600 sheets/min

CE Certified

Specifications

ManufacturerWINPAK WPA
Model1000DSV
Year2018
ConditionUsed
Stock Number110166
