108" (2.75M) RECARD CRESCENT FORMER TISSUE MACHINE 70 TPD PM15

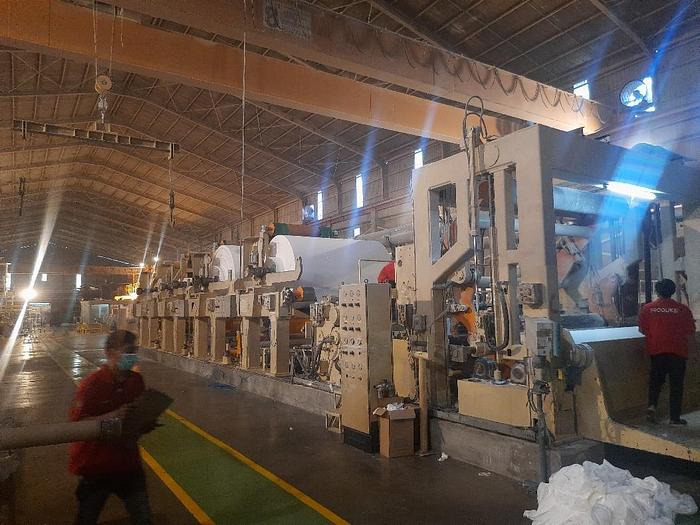

Recard Crescent Former Tissue Machine

Manufacturer: RECARD

Type: Crescent former

Year of construction: 1998

Material width on reel: 2750 mm

Production speed: up to 1400 m/min

Grammage: 14 to 23 GSM

Raw material: Virgin pulp

Drive voltage: 400V 50 Hz

Drive type: (AC & DC 400V)

DCS: Siemens S7-400 (Include MDP & MCC, cables)

Products: Tissue: Napkins, facials, toilets & kitchen towel

Headbox supplier: Recard

Pond side width: 2780mm

Layers: 1

Wet section/pressing:

Suction press: 80 kN/m

Blind press: No

Yankee Cylinder:

Diameter: 3850mm

Width: 3050mm

Max pressure: 8 bar

Dyring hoods: (Valmet 1998)

Energy: Gas/max temp 450 degrees C

Profling: Yes 6+2

Doctor blade:

No. 1 cutting

No. 2 creeping with conformatic complete with oscillation

No. 3 cleaning

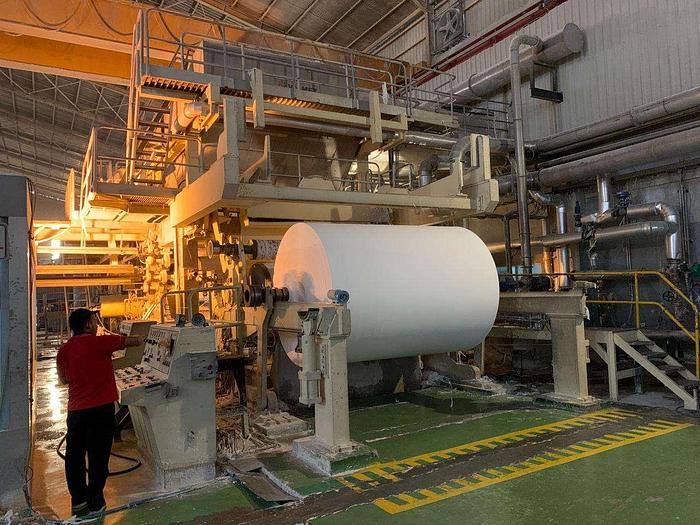

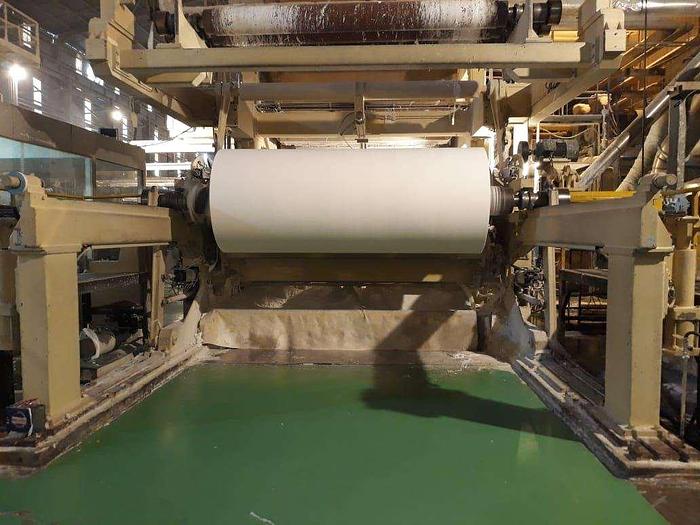

Pope Reel

Max roll diameter: 2300mm

Max width: 2730mm

Spare parts:

2 wire rolls

2 felt rolls

1 suction press roll

4 spools

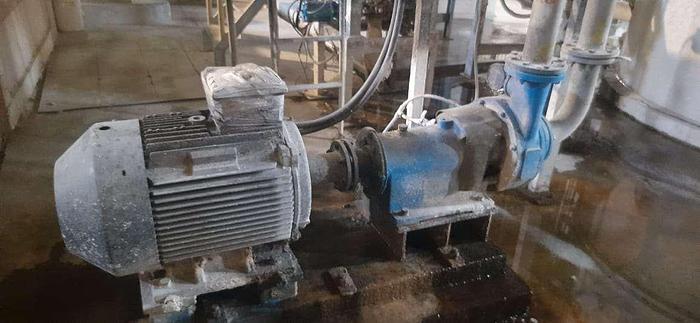

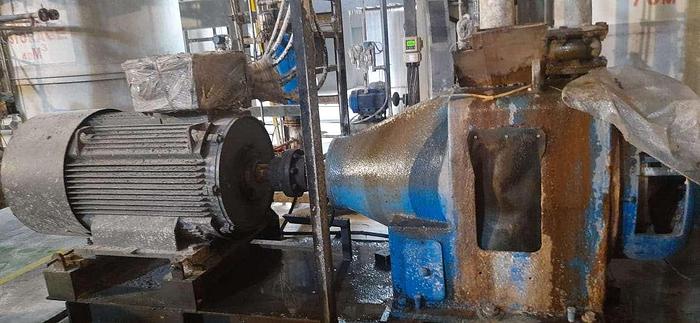

Approach flow:

Fan Pump Manufacturer Ahlstrom, Model ZPP42 – 500, Year 1997, Power : 403 kW, DC Motor

Vertical Screen Manufacturer ST Machinne, Italy, Model SPT 1200, Year 1997, Power : 45kW, AC Motor

Vacuum pump Nash, Model 904T 1, Year 1998, Power : 250kW, AC Motor

Vacuum pumps, Manufacturer Azmec, Italy, Model AL-100/2000, Year 1998, Power : 160 kW, AC Motor

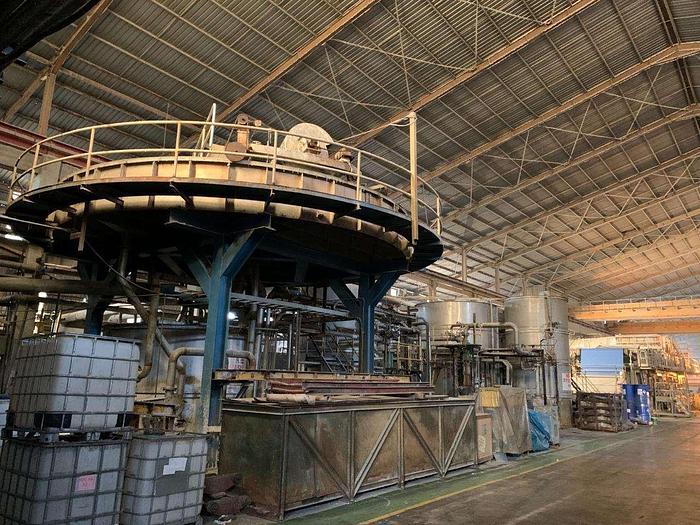

Fiber recovery: Krofta KWI Model SPC 33 (Capacity 6000 Lpm), complete with accesories

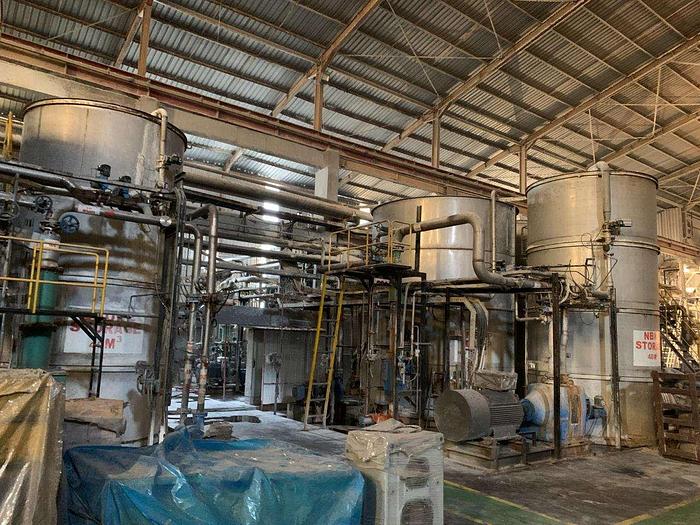

STOCK PREPARATION #2:

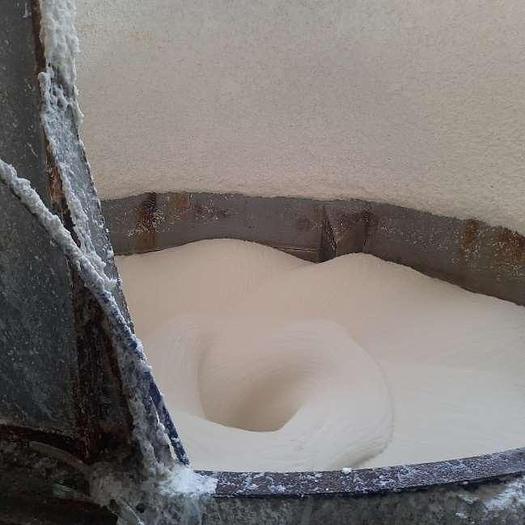

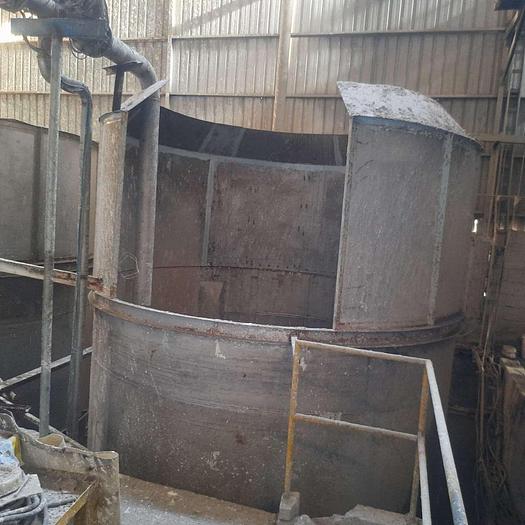

Pulper #1 Helico, European Manufacturer, Capacity : 16m3

Power: 160 kW agitator

With conveyor

High density cleaner: 1 unit

Refiner 1: double disc type, make Bruno, Brazil in 1997. Disc diameter 26“. Power : 330kW

Refiner 2: double disc type, make Bruno, Brazil in 1997. Disc diameter 26“. Power : 375kW

Deflaker 1: Chinese make, 15-60 t/day, made 2017. Power : 55Kw

ACCESORIES:

Includes: Pump, tank, agitator, instruments, valves, piping

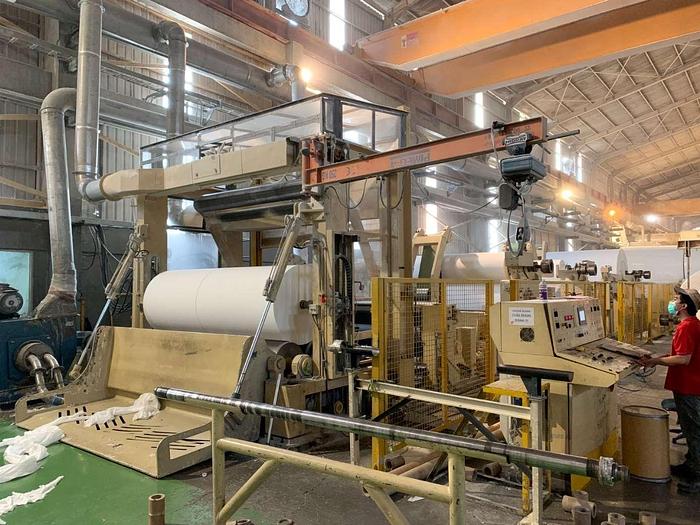

REWINDER:

 Manufacturer: ACelli

Year: 1998

Max width: 2750 mm

Max reel diameter: 1800 mm

Production Speed: 1000 m/min

Basic weight range: 12 – 30 gsm

Max plies: 4

Drive voltage: 400V DC

Drive type: ABB

Slitters: 6 Pcs by maxcess
