108" (2.75M) RECARD CRESCENT FORMER TISSUE MACHINE 65 TPD PM14

Recard Crescent Former Tissue Machine

Manufacturer: RECARD

Type: Crescent former

Year of construction: 1993

Material width on reel: 2750 mm

Production speed: up to 1250 m/min

Grammage: 11 to 23 GSM

Drying capacity: 65 ton/day

Raw material: Virgin pulp

Electrical drives: 400V 50 Hz

Electrical drive type: (DC-440V)

Hood drive type: Siemens DC

DCS: Siemens S7-400 (Include MDP & MCC, cables)

Products: Facials & Toilet Tissue

Headbox supplier: Overmeccanica

Pond side width: 2780mm

Layers: 1

Wet section/pressing:

Suction press: 80 kN/m

Blind press: 80 kN/m

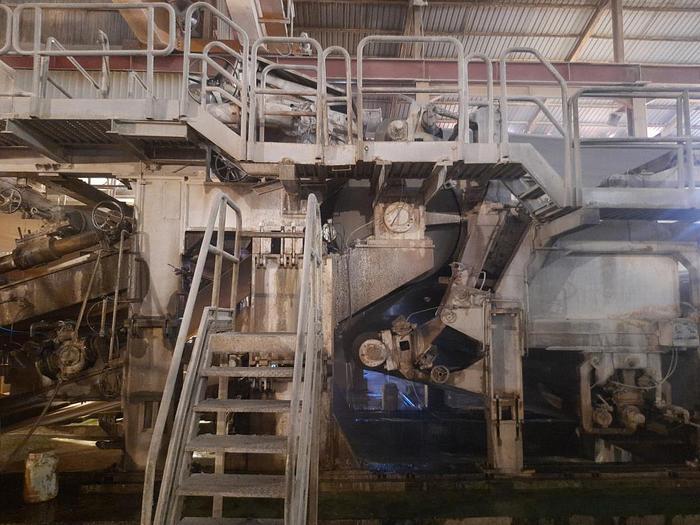

Yankee Cylinder:

Diameter: 3850mm

Width: 3050mm

Max pressure: 8 bar

Dyring hoods:

Brand: Aerothermic Lucca Italy

Energy: Gas/max temp 430 degrees C

Profling: Yes 10+2

Doctor blade:

No. 1 cutting

No. 2 creeping with conformatic complete with oscillation

No. 3 cleaning

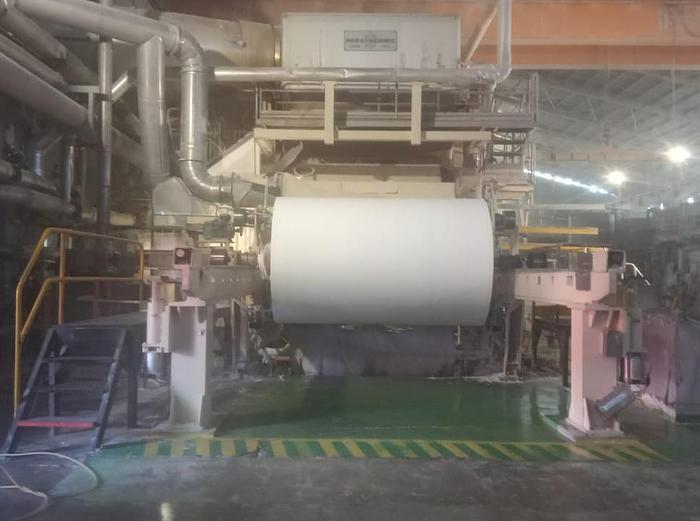

Pope Reel

Max roll diameter: 2300mm

Max width: 2730mm

Spare parts:

1 forming roll

1 wire roll

2 felt rolls

1 suction press roll

1 blind drill roll

4 spools

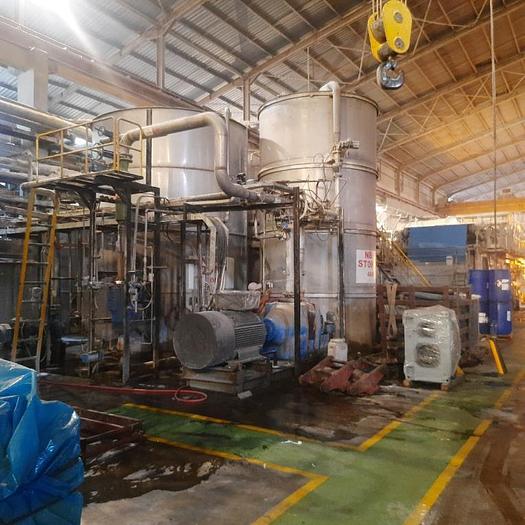

Approach flow:

Fan pump, 220kw DC motor

Vertical screen, 45kw, AC motor

Nash Vacuum pump, 315kw, AC Motor

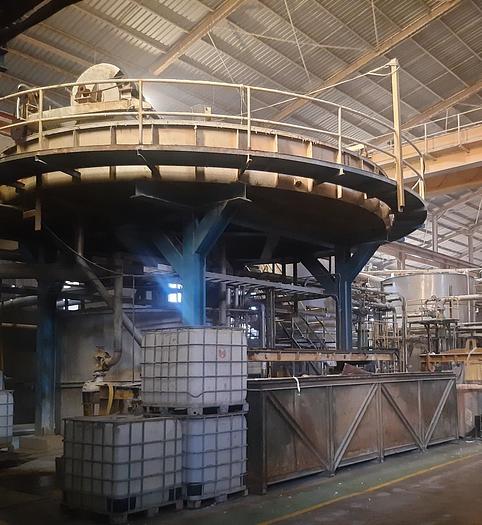

Fiber Recovery: Krofta (capacity 6000 Lpm) complete with accessories

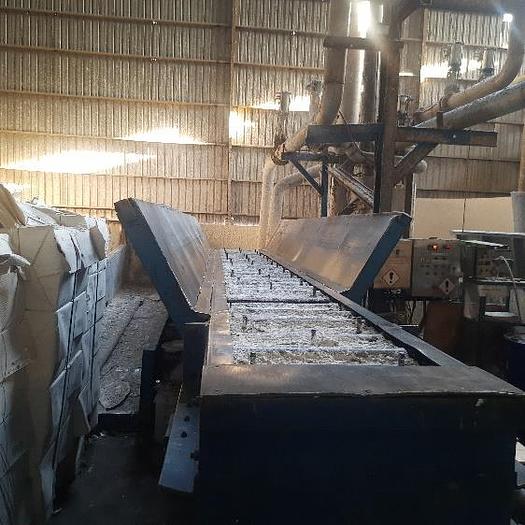

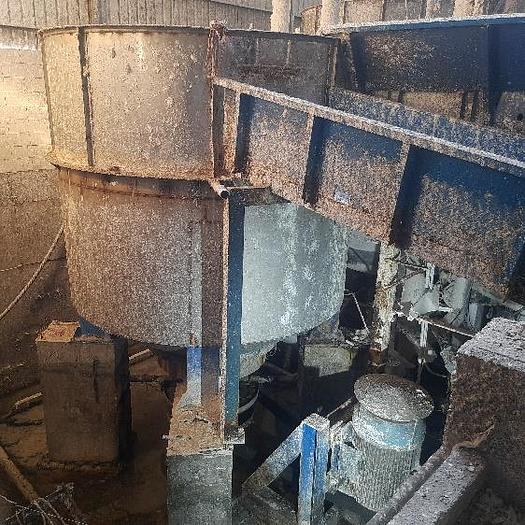

Pulper:

Capacity: 16m3

Power: 160 kW agitator

Note: with conveyor

HDC: one unit

Refiner 1: 350 kW

Refiner 2: 350 kW

Deflaker 1: 90 kW

Accessories: Includes pump, tank, agitator, instruments & valves

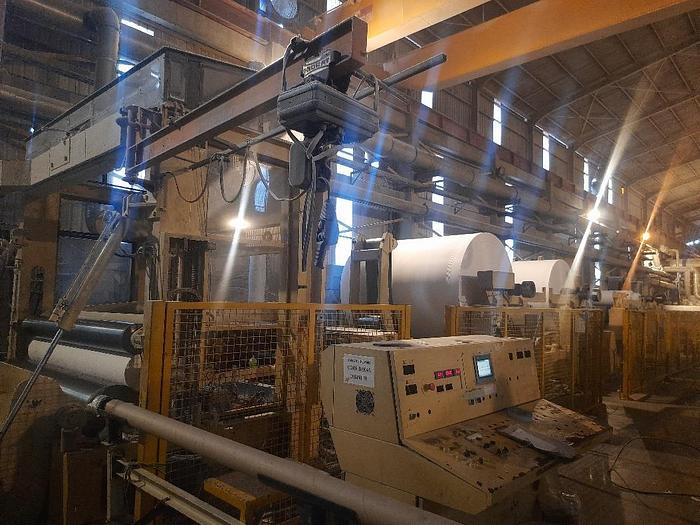

Manufacturer: ACelli

Year: 1998

Max width: 2750 mm

Max reel diameter: 1800 mm

Production speed: 1200 m/min

Basic weight range: 12 – 30 gsm

Max plies: 4

Drive type: Siemens AC Drive

Unwinds: 4 stands

Max parent reel diameter: 2500 mm

Slitters: 6 Pcs by maxcess
