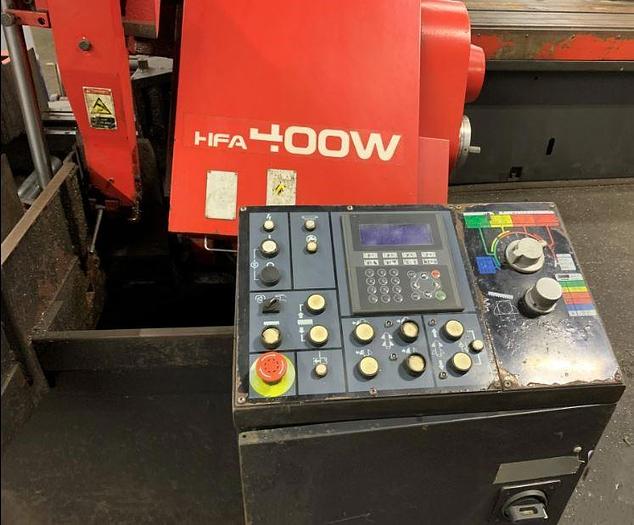

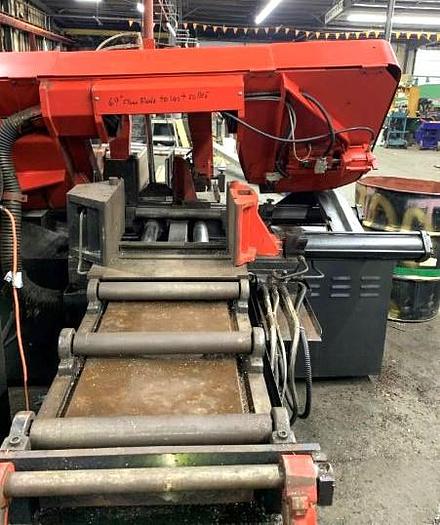

2011 AMADA HFA400W AUTOMATIC HORIZONTAL BAND SAW

2011 AMADA HFA400W AUTOMATIC HORIZONTAL BAND SAW

8 HP 3 PHASE MOTOR

NC BACK GAUGE

MOTION DETECTOR

SELF DIAGNOSTICS

VARIABLE BLADE SPEED

FULL STROKE VISE

BLADE 1.5"W AT 0.05" THICK

THIS CAN BE OPERATED AS A MANUAL, SEMI-AUTOMATIC AND FULLY AUTOMATIC

CUTTING CAPACITY ROUND(DIAMETER) 0.5" TO 16" (13-420mm)

CUTTING CAPACITY RECTANGLE (W X H) 16" X 16" (400 X 400mm)

WORK LOAD CAPACITY 5,511 LBS

BLAD DIMENSIONS 15" X 0.05" X 1.5"

FRONT AND REAR VISE

HYDARUALIC PUMP MOTOR 2 HP

CUTTING FLUID PUMP MOTOR 1/4 HP

POWER SUPPLY VOLTAGE AC220V, 3PH, 60HZ OR AC440,3PH, 60HZ

POWER REQUIREMENT 12.8 kVA

CUTTING FLUID TANK CAPACITY 31.5 GALLONS

HYDRAULIC TANK CAPACITY 10.5 GALLON

CHIP CONVEYOR FOR CHIP DISPOSAL

STROKE 19.6"
