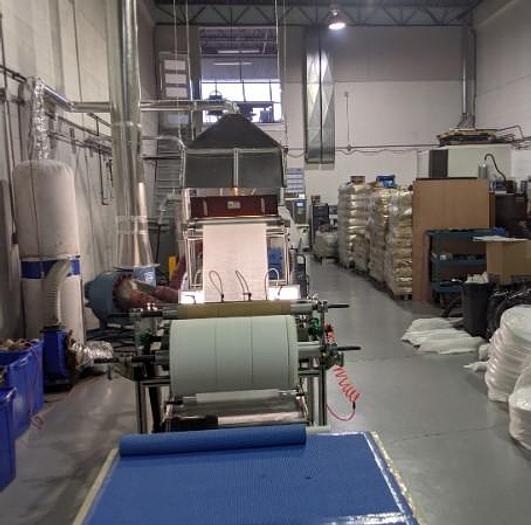

24" WIDE (600MM) BFE PP MELTBLOWN FABRIC MAKING LINE

One (1) BFE99 24" (600mm) PP Meltblown Fabric Making Machine

Automatic loader ZJ200 1 set

Hopper dryer STG-U160 1 set

65/33 Single screw extruder 22kw 1 set

600mm Hanger type SPINNERET and heating pipe 1 set

50kw Air heating box 1 set

Screen changer 1 set

Gear Pump 1 set

22kw Blower for mold 1 set

Forming machine 1 set

Electrostatic device 1 set

Slitting and Winding device 1 set

Color mixer 100kg 1 set

Ultrasonic Cleaner and heater case 2 sets

Spare parts 1 set

65/33 screw and barrel 1 set

Spare spinneret 1 set

Technical Description:

Automatic loader ZJ200

Max. wind pressure 9800 pa

Max. air volume 2 m³/min

Power of motor 1.1 kw

speed 2800 r/min

Transportation capacity 200 kg/h

Volume of aspirating hopper 5 L

Inter diameter of transfer soft tube 40 mm

Inter diameter of aspirating soft tube 40 mm

Method of loading Vacuum aspirating

Weight 75 kg

Dimension 400 x 450 x 700 mm

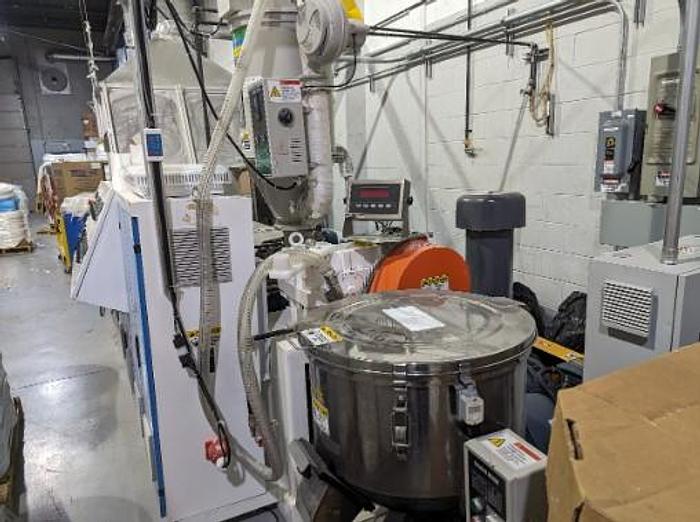

Hopper dryer STG-U160

Total volume 160L

Heating power 4.8 kw

Loading capacity 75kg

Blower power 0.12 kw

Material Stainless steel

Temperature adjusting Electron temperature adjuster

Weight 75 kg

Dimension 950 x 530 x 1200 mm

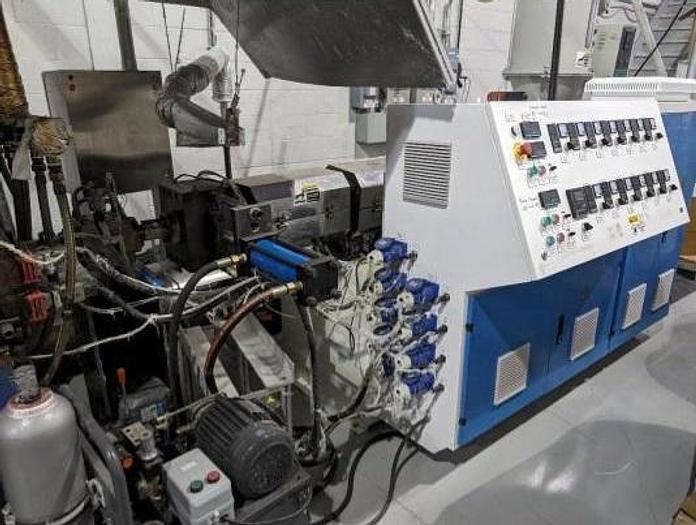

SJ 65/33 Single-screw extruder

Screw diameter 65 mm

L/D 33:1

Motor power 22 kw

Rotating speed of screw 1-100 r/min

Heating power 15 kw

Extrusion capacity 350-400kg per day

Center height 1000 mm

Weight 1300kg

Dimension 2500 x 1300 x 1500mm

Extruder speed adjusting way Frequency conversion

Barrel temperature adjusting way Heating: cast aluminum heater

Cooling: 4 sections by air

Material of screw and barrel 38CrMoAlA Azotizing on surface 0.4 ～ 0.7mm

Rigidity: above 700 HV

Drive way Hard tooth gearbox

Converter HOLIP

Temperature controller Fuji

Switch DELIXI

Contactor Schneider

Motor Dongya

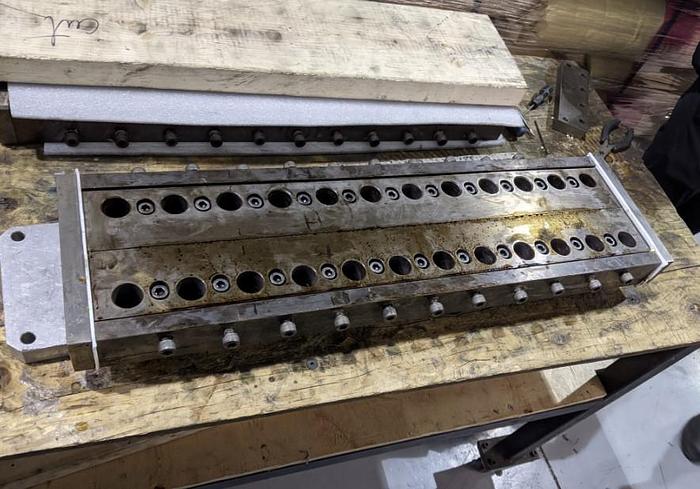

SPINNERET

Hanger type Spinneret and heating pipe

Specification 600mm

Material S431

Density 25-150 g/m2

Holes diameter Around 0.2-0.25mm

BFE 95%-99%

Including air heating system

Spare SPINNERET front plate

50kw Air heating box

Heating power 50kw

Screen changer

Structure plate type ， double working place non-stop auto-changer,

horizontal

Screen changing drive Hydraulic system, manual control

Pressure sensor

Gear Pump

Gear Pump 30cc

Extruder speed adjusting way Frequency conversion

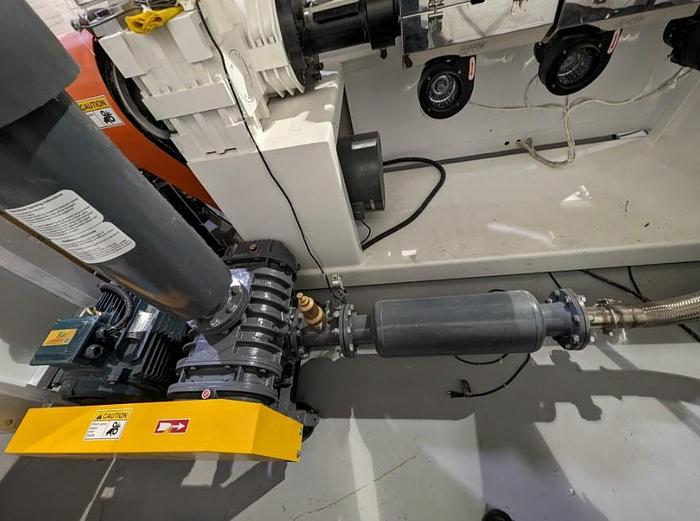

Blower for mold

Air volume 7.8m3/min

Motor 22kw

Forming Machine

Width of roller 800mm

Motor 0.75kw

Frame Material Stainless steel

Electrostatic device

Bacterial filtration rate ≥95%

Generator power 120k V single side

Slitting and winding device

Width of roller 800mm

Motor 0.75kw

Material Stainless steel

blades type Disk type

Diameter and quantity 300mm with 4 pcs

Color mixer

Mixed amount 100kg

Material barrel volume 280L

Motor power 3kw

Weight 350kg

Dimension 1050×820×1350mm

Main shaft rotate speed 85rpm

Timer 5-15min

Ultrasonic Cleaner Bath and Electric Oven

Take up conveyor with electrostatic generators.

Melt Flow modifier additive

Percentage of MFR modificator additive letdown with a 35 Melt Index Total 3825 PP resin.

220V ,60HZ,3 Phase
