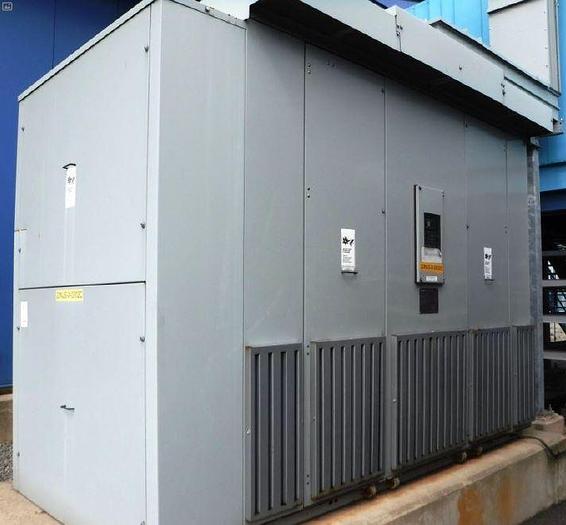

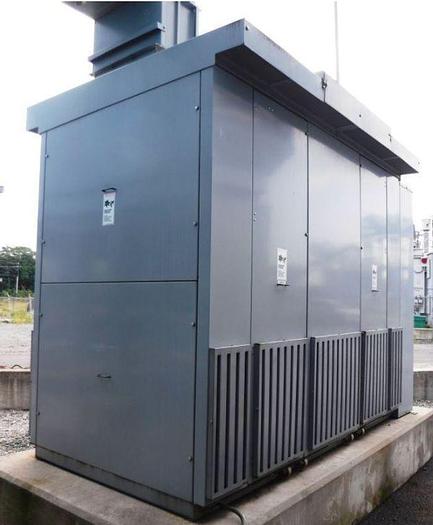

2009 SIEMENS 2000KVA DRY TYPE DISTRIBUTION TRANSFORMER

STOCK #110109

Siemens Dry Type Cast-Coil Transformers

2000/2667 KVA

Primary:  13,800 Delta with standard straddle no load taps, Secondary:  480 Y/277 @ 2406/3208 Amps

3 Phase

60 Hertz

Class AA / FA

Impedance 5.73 %

Rise 115 C

Type CAST

Ambient Temp AVG 30 C / Max 40 C

Manufactured 2009

NEMA 3R Ventilated Enclosure

Conductors: CU / CU

Taps: 14,490 - 14,145 - 13,800 - 13,455 - 13,110

Weight: 16,400 lbs.

TRANSFORMER WILL BE ELECTRICALLY TESTED PRIOR TO SHIPPING
