MAREN MODEL 122 20HP CLOSED DOOR BALER

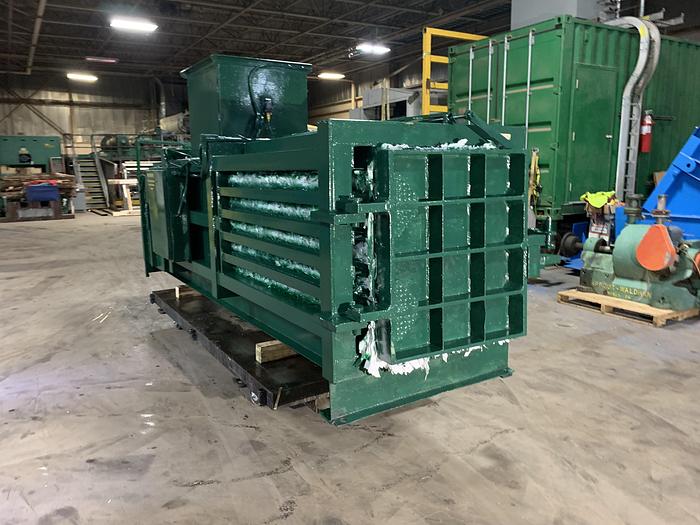

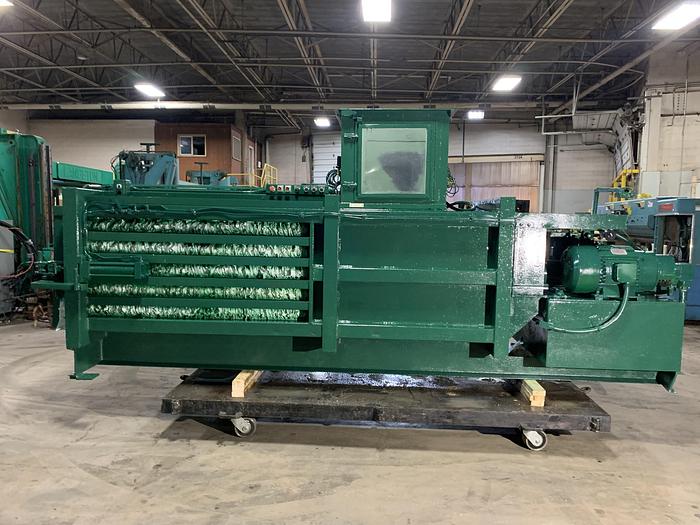

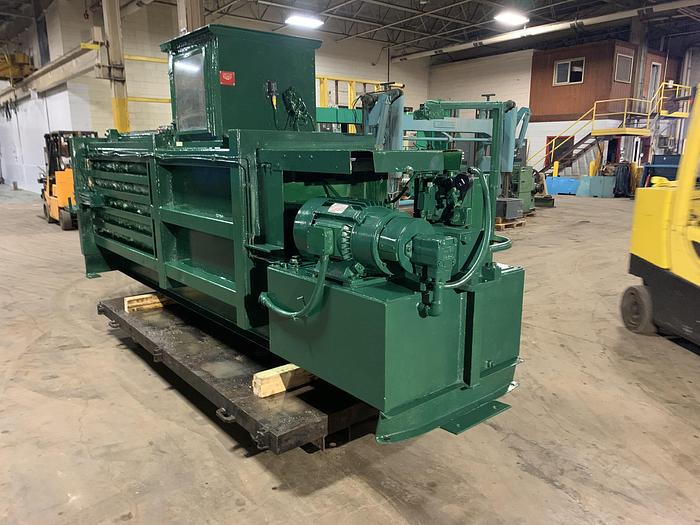

MAREN MODEL 122 Horizontal Closed Door Baler

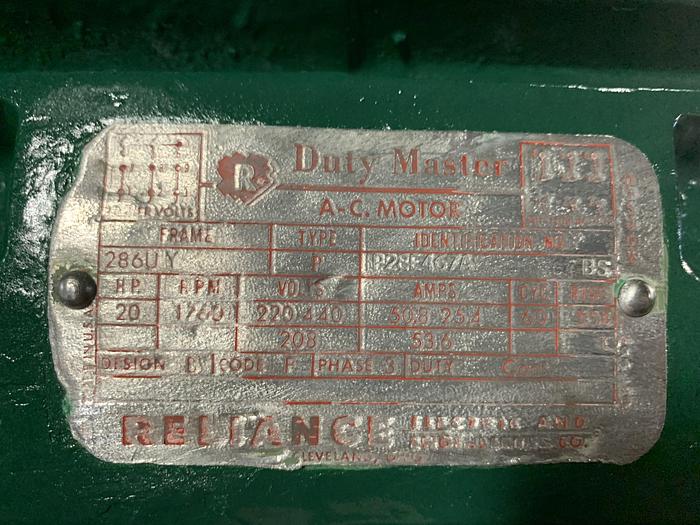

20 HP RELIANCE DUTY MASTER AC MOTOR

220/440/208V 3Ph 50AMP 60Hz

Maren 122 Legacy Series Closed Door Balers are the first designed specifically for baling of Chipboard, Boxboard, Folding Cartons and Waxed or Coated materials.

The Maren 122 Legacy Series Closed Door Baler produces “Mill Size” bales generating maximum revenue for your recycled product and a quick return on investment.

The vault-type discharge door and heavy-duty locking mechanism will easily withstand the forces generated by baling – up to 96,000 pounds of thrust – without warping or torquing. All moving parts are completely enclosed for safe operation.

Maren 122 Legacy Series Closed Door Balers can be used in conjunction with pneumatic conveying systems, belt conveyors or feed chutes

A photo-electric eye in the hopper controls the baling operation. When the light beam is blocked by material, the baling cycle automatically starts and continues until the light beam is no longer blocked. The baler will not operate unless the hopper is filled. A buzzer sounds to alert the operator that the bale is complete. An operator is only needed to release the door, tie off and handle the bale—a part time job.

• Maren 122 Legacy Series Closed Door Baler Automatic Cycle Operation
• Various Bale Cross Sections & In-Feed hoppers sizes available
• Vault-Type Discharge Door release
• Manufactured with name brand Components
• Built to ANSI & OSHA standards
• Electrical system is “UL” certified

Materials

• SHREDDED CORRUGATED, FOLDING CARTON STOCK AND COATED STOCK
• MOLDED FIBER PRODUCTS
• SHREDDED PAPER
