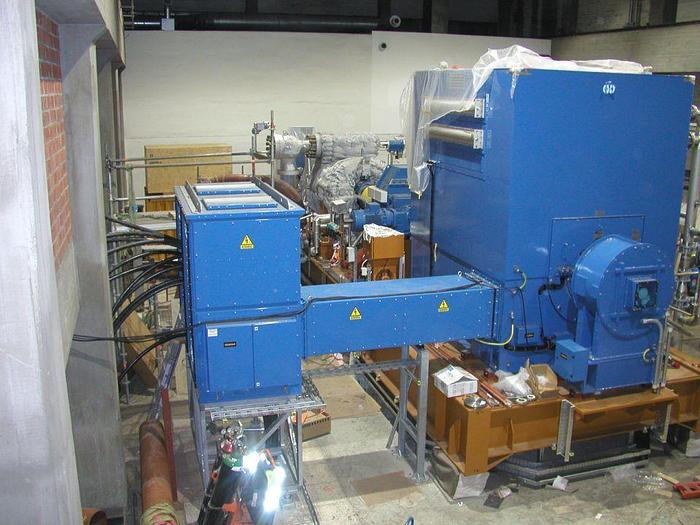

SIEMENS MODEL SST 300 G32 A 22.5MW BACK PRESSURE TURBINE YEAR 2008

109993

One (1) Used Siemens Steam turbine VP4

Back-pressure turbine

22,5 MW

26 MVA

In operation since 2009

Running time: 24 000 h

Operation manual in English

–Siemens SST 300 G32 A, extraction back-pressure turbine, 22,5 Mwe

–Revolution: 8274 rpm

–Inlet pressure: 90 bar a

–Inlet temperature: 525 C

–Inlet flow (min/max.): 7,93/33,5 kg/

–Tap-off pressure (min/max.): 3,7/24,1 bar a

–Tap-off temperature (min/max): 259-357 C

–Tap-off flow (min/max.): 7,9/33,5 kg/s

–Outlet pressure: 3,4 bar a

–Outlet temperature (min/Max.): 144/205 C

–Outlet flow (min/max.): 7,9/33,5 kg/s

–in operation 2009-2012

–Operation hours: 24000

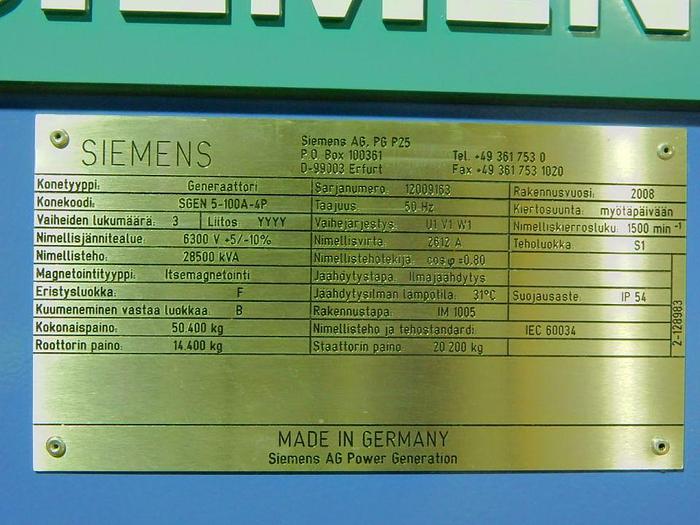

Generator

–Manufacturer: Siemens Teho Generation AG, Germany

–Type: SGen5-100A-4P

–Nominal output: 28,5 MVA

–Reactive power: 22,8 MW

–Voltage: 6,3 kV (+5/-10 %)

–Rated current: 2612 A

–Frequency: 50 Hz

–In operation 2009-2012

–Operation hours: 24000

Included:

-Turbine

-Gearbox

-Turning gear

-Generator

-Generator cooler

-Oil system

-Siemens automation system

-Automation and electrical equipment (as it is on the field)

-Motors

-Frequency changers

-Valves

-Auxiliary devices (as it is on the field)

-All available existing specific spare parts
