65" EGAN TURRET UNWIND 50" DIAMETERS WITH FULL SPEED SPLICER

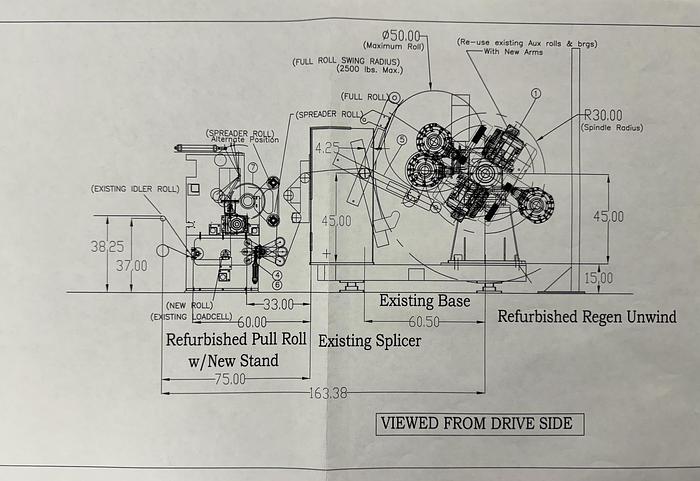

Used 65" EGAN Turret Unwind with Dancer & Pull roll assemblies

Circonix refurbished in 2012

50" max roll diameter roll capability

3000 Lb Max roll weight

Full speed bi directional splicer

Rated 750 FPM- 1000 FPM Mechanical speed

Bi-directional roll splicing

(2) 40 HP Siemens AC regenerative motors and drives for turret spindles

15HP Siemens motor drive for turret indexing

10HP Siemens motor drive for pull roll assembly

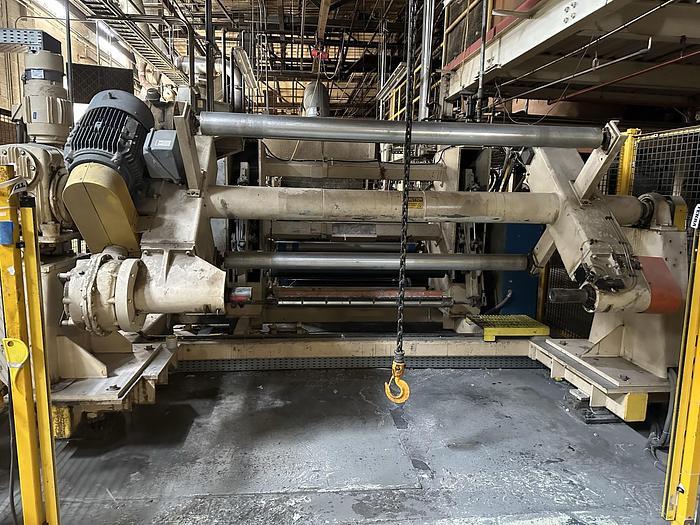

18" diameter Black Clawson nipped pull roll assembly with 6" nip roll

Documentation available.

**EGAN turret rewind with spicing available
