63" (1700MM) NEW SRC SYSTEMS 800 DUPLEX TURRET SLITTER REWINDER 30" OD ROLLS
63" (1700MM) NEW SRC SYSTEMS 800 DUPLEX TURRET SLITTER REWINDER 30" OD ROLLS
orCall +1 215-664-6016
Description
200102

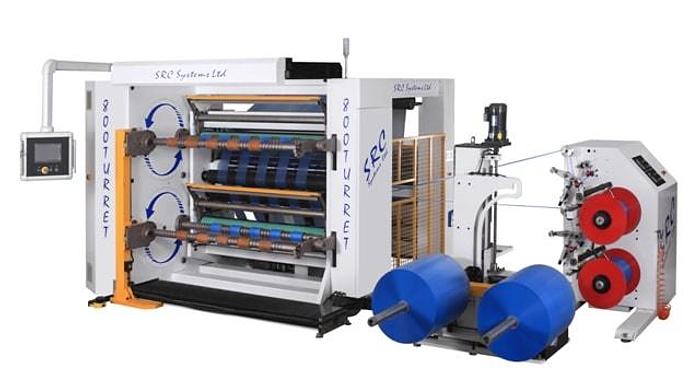

One (1) New 63" SRC 800 Turret Duplex Slitter
Working width max: 63" (can be increased to 80" depending on material and weight.)
Working width min: 26" on 66" wide machine
Unwind diameter: 48"
Max unwind roll weight: 3300lb
BST Ekr 500 edge guide (BST Pro com 60 upgrade available)
1960 ft per minute max speed
Slitting: Rotary shear, razor, or both
Minimum slit width: 2"
Rewind diameter max: 32"
Rewind shaft type: full differential slip shaft
Cycle time: less than 30 seconds
Omron PLC
Yaskawa drives
Schneider control gear
Mindman pneumatics
Available options:
Female knife positioning
Taping system
Dual oscillating trim winders
Kongskilde trim blower
Finished roll push off
Finished roll mechanical unload to pallet level
Laser core positioning
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
Specifications
| Manufacturer | SRC SYSTEMS LIMITED |
| Model | 800 TURRET |
| Condition | Used |
| Stock Number | 200102 |
| Width | 63.0 in |
| Rewind diameter | 32.0 in |
| Equipped with | Lead time: Appx. 22-26 weeks. Delivery dependent on production commitment at the time of order. |
| Working width max | 63" (can be increased to 80" depending on material and weight.) |
| Working width min | 26" on 66" wide machine |
| Unwind diameter | 48" |
| Max unwind roll weight | 3300lb |
| Slitting | Rotary shear, razor, or both |
| Minimum slit width | 2" |
| Rewind diameter max | 32" |
| Rewind shaft type | full differential slip shaft |
| Cycle time | less than 30 seconds |
