16" (400MM) NEW SRC SYSTEMS 404 DOCTOR REWINDER
16" (400MM) NEW SRC SYSTEMS 404 DOCTOR REWINDER
orCall +1 215-664-6016
Description
200206

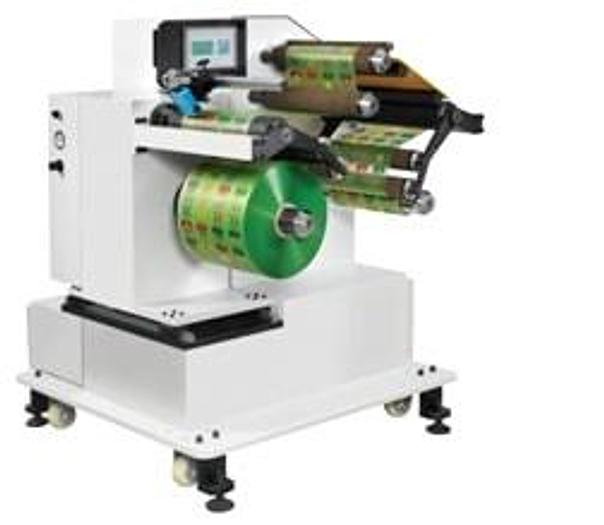

One (1) New SRC Systems Model 404 Cantilevered Doctor Machine
Max web width: 16" (400mm)
Parent roll diameter: 16" (400mm)
Parent roll max weight: 110Lb (50Kg)
Winding shafts: 3" (76mm) air shafts
Dancer Arm controlled tension system
Single direction
Tension range: 1.1 - 11Lb (0.5 - 5Kg)
Web guide: BST
Web guide travel: +/- 1.9685" (50mm)
Unwind brake: Electromagnetic type
Machine speed: 900fpm (300mpm)
Rewind diameter: 16" (400mm)
Rewind lay-on arm: Pneumatic
SRC has over 25 years experience.
Est. 1994 in Ipswich, U.K.
SRC Systems, Ltd. machines come with remote support & a 12-month parts warranty.
Specifications
| Manufacturer | SRC SYSTEMS LIMITED |
| Model | 404 DOCTOR |
| Condition | Used |
| Stock Number | 200206 |
| Width | 16.0 in |
| Rewind diameter | 16.0 in |
| Equipped with | Lead time: Appx. 18-20 weeks |
| Max web width | 16" (400mm) |
| Parent roll diameter | 16" (400mm) |
| Parent roll max weight | 110Lb (50Kg) |
| Winding shafts | 3" (76mm) air shafts |
| Tension range | 1.1 - 11Lb (0.5 - 5Kg) |
| Web guide | BST |
| Web guide travel | +/- 1.9685" (50mm) |
| Unwind brake | Electromagnetic type |
| Machine speed | 900fpm (300mpm) |
| Rewind lay-on arm | Pneumatic |
