BRETTING 12" - 17" VARI SIZE NAPKIN FOLDER / REBUILT 2013
BRETTING 12" - 17" VARI SIZE NAPKIN FOLDER / REBUILT 2013
orCall +1 215-664-6016
Description
108930

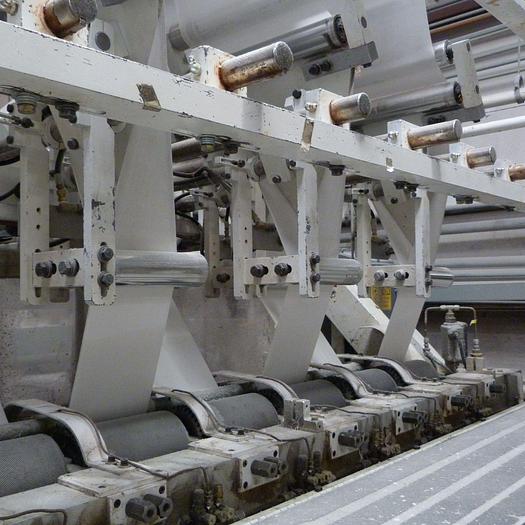

One (1) used Bretting 12"-17" Variable Size Napkin Folding Line,
Number of Plies: Single or 2 Ply Napkins
Fold: Double Transverse, 1/8 Fold Dispenser
Cut-off Length: Variable, 12" - 17"
Number of Webs: 6
Product Produced Currently: 13" Wide X 12" Cut-off 1/8 Fold Dispenser
Finished Size: 6.5" Wide - 3 and 4 Panel Napkins at 12" and
17" Cutoff
Output: 3,400 Napkins/Minute

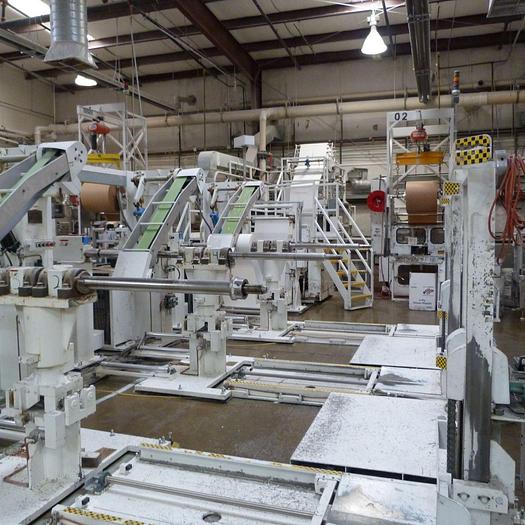

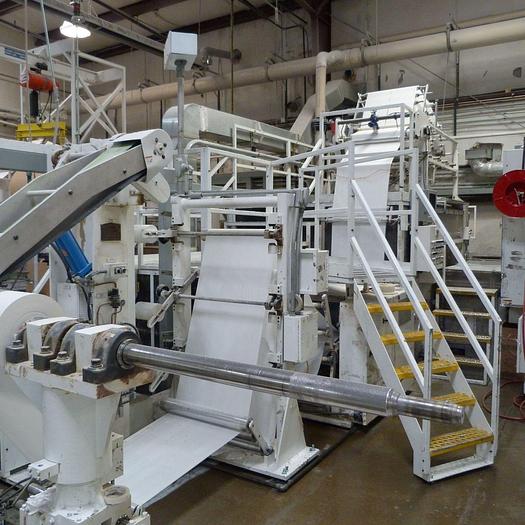

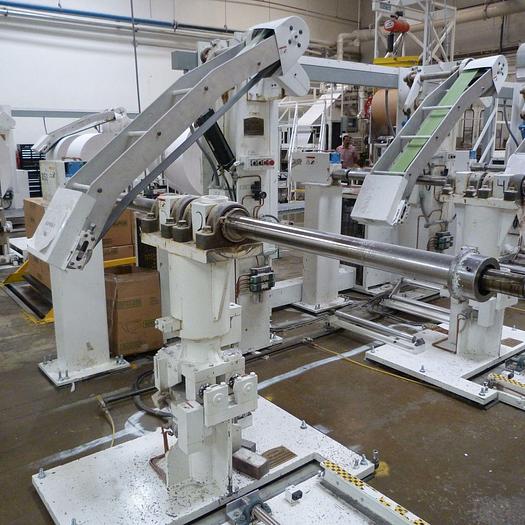

(3) Bretting Turret Type Unwind Stands - S/N: 5031-95
(3) Hydraulic Roll Loaders - S/N: 5033-95

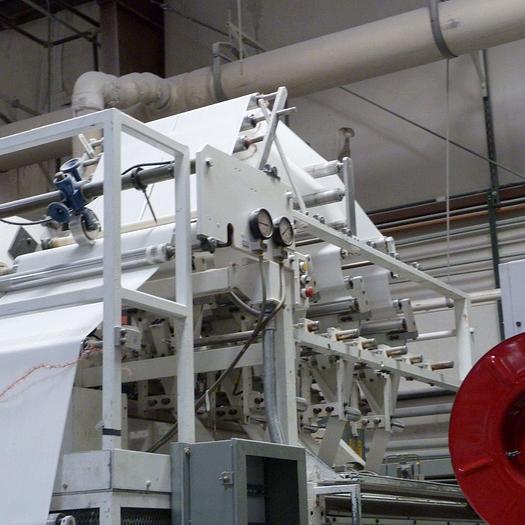

Bretting (2) Station Horizontal Steel to Paper Embossing Unit
(Spare paper embossing roller included.)
Lincoln Automatic Oiling System
Bretting Automatic Separator/Bander - S/N: 5034-95

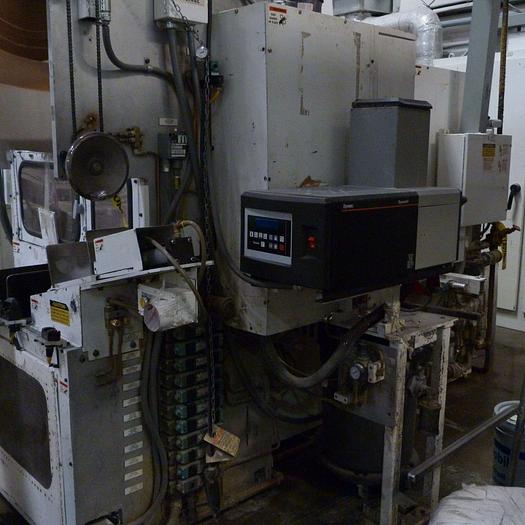

Hot Melt Gluing System

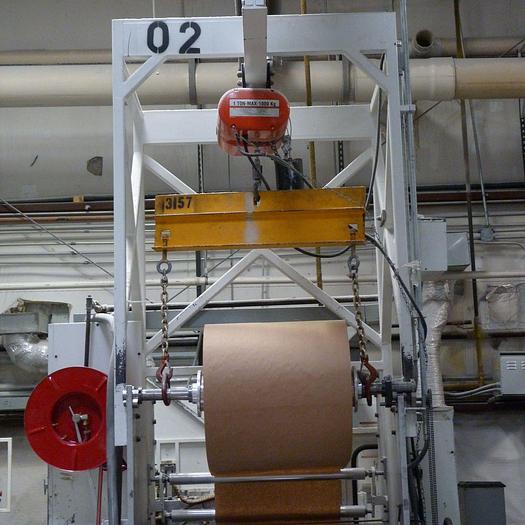

Sleeve Stock Roll Hoist
Re-Wrap Station with Package Guides to Salvage Broken Packages
Allen Bradley PLC Model SLC 5/04
Isolation Transformer
Indramat 40HP AC Vector Drive
Indramat 40HP Motor
Bel 505 Carton Erector

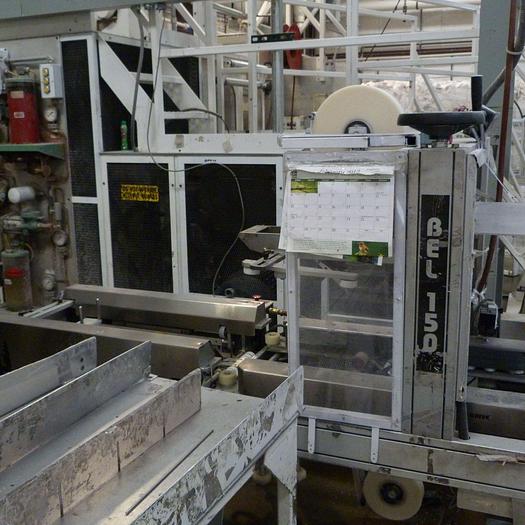

Bel 150 Case Taper
Built in 1995, Machine rebuilt in April, 2013 at CG Bretting.
All bearings, housings, gears were replaced. Journals and folding rolls
were inspected.
In production,
Specifications
Manufacturer | BRETTING |
Model | NAPKIN FOLDER |
Condition | Used |
Stock Number | 108930 |
Width | 12.0 in |
Number of plies | Single or 2 Ply Napkins |
Fold | Double Transverse, 1/8 Fold Dispenser |
Cut-off length | Variable, 12" - 17" |
Number of webs | 6 |
Product produced currently | 13" Wide X 12" Cut-off 1/8 Fold Dispenser |
Finished size | 6.5" Wide - 3 and 4 Panel Napkins at 12" and |
Output | 3,400 Napkins/Minute |
(3) bretting turret type unwind stands - s/n | 5031-95 |
(3) hydraulic roll loaders - s/n | 5033-95 |
Bretting automatic separator/bander - s/n | 5034-95 |
