60" WIDE MAMATA VEGA 820 PLUS STAND UP POUCH & BAG MACHINE MFG. 2010 - PENDING LS

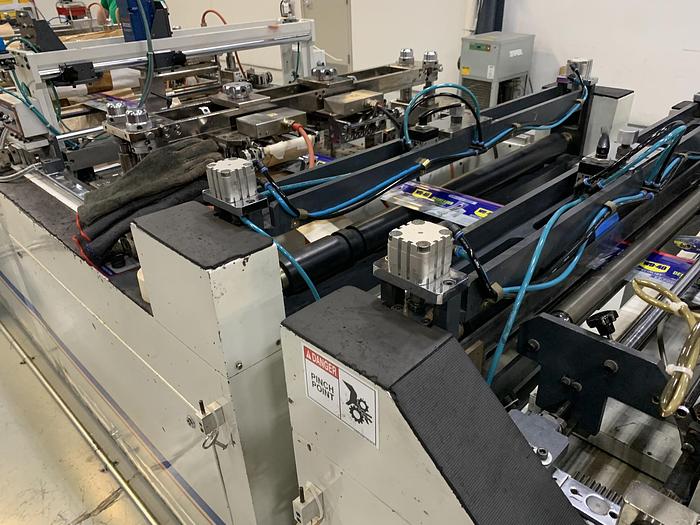

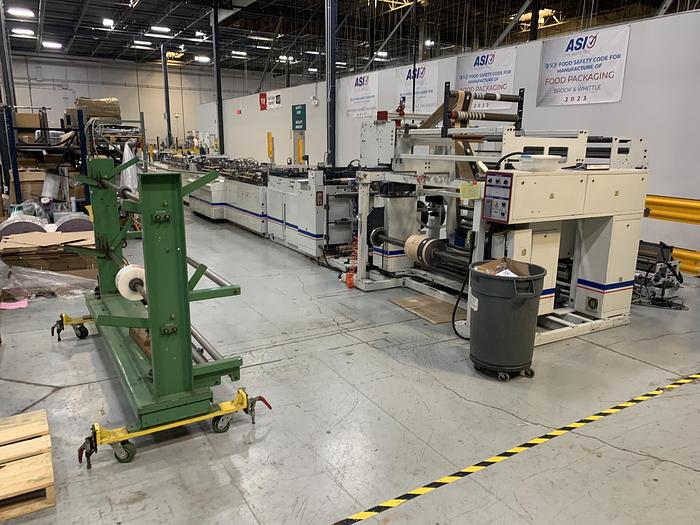

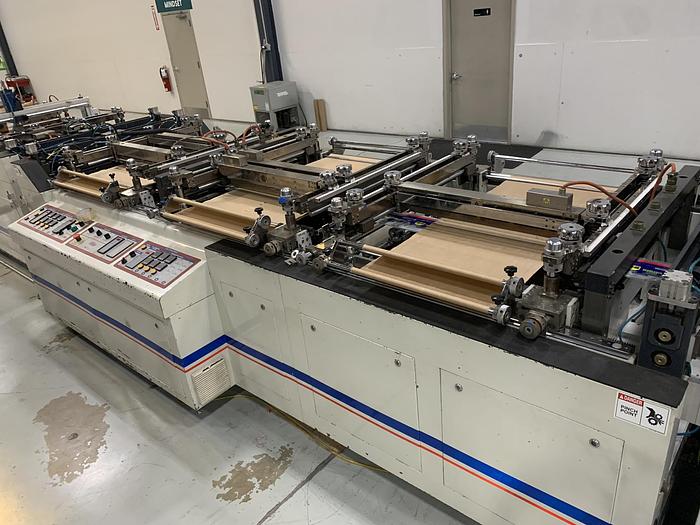

One (1) Used 2010 Mamata Vega-820-Plus Pouch Machine

Stand up pouch converting line & Plastic bag machine

Two up capable (two webs at the same time)

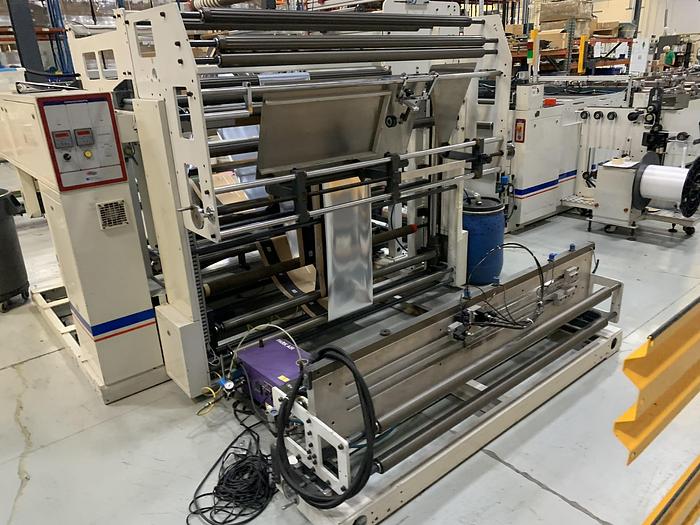

Reenforced header capable with second unwind (included)

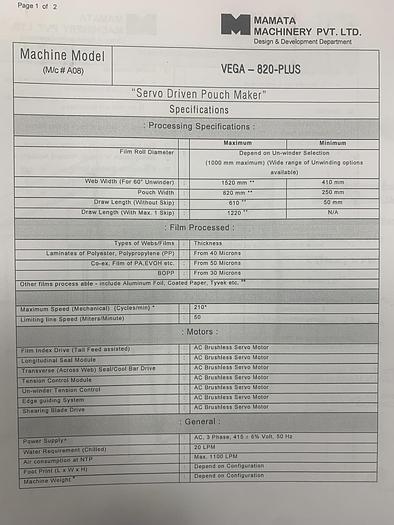

Max web width: 60” (1520mm)

Max unwind diameter: ?

Max pouch width: 32.2” (820mm)

Min pouch width: 9.8” (250mm)

Max draw length: 24” (610mm) without skip. Max 1 skip for 48” (1220mm) draw length

Min draw length: 1.9” (50mm)

Laminates of Polyester, Polypropylene: from 40 microns

Co-ex. Film of PA, EVOH etc: from 50 microns

BOPP: From 30 microns

Can also process: Aluminum foil, coated paper, tyvek

Maximum cycles per minute: 210

Max mechanical speed: 50 mpm

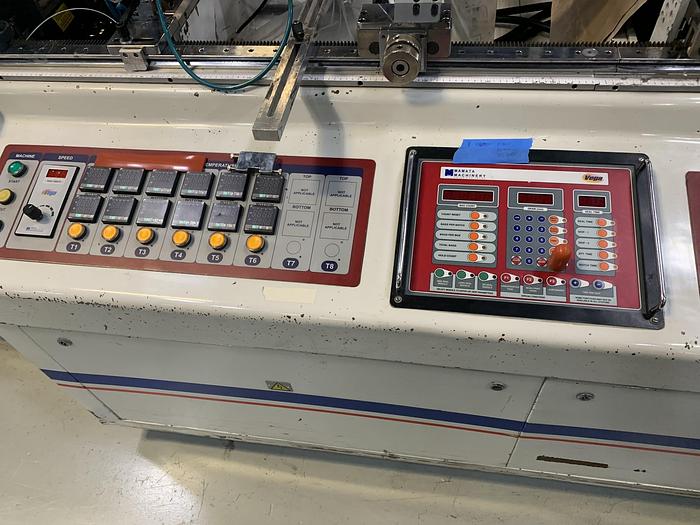

AC Servo motor and drive controller

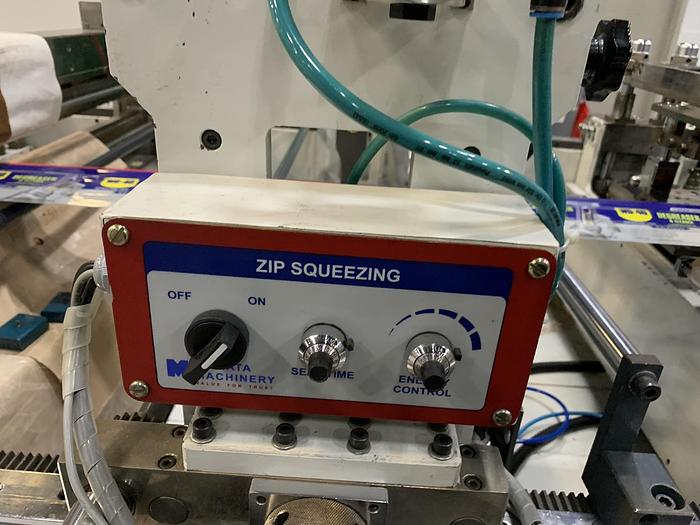

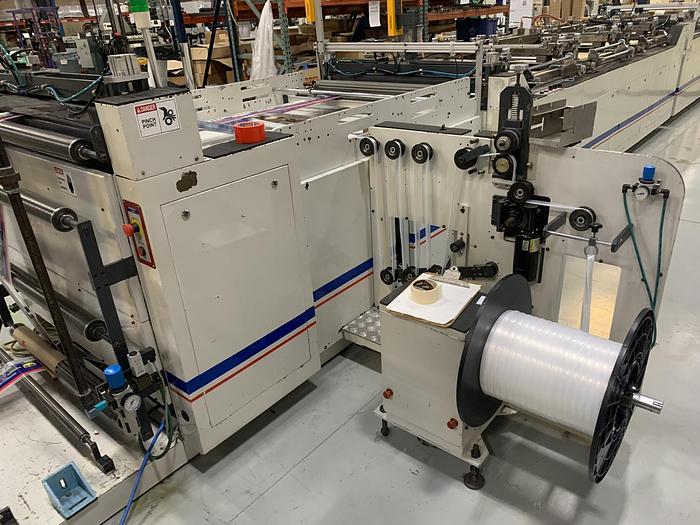

Zipper attachment (20mm child resistant, 22mm powder resistant, 10mm push to close)

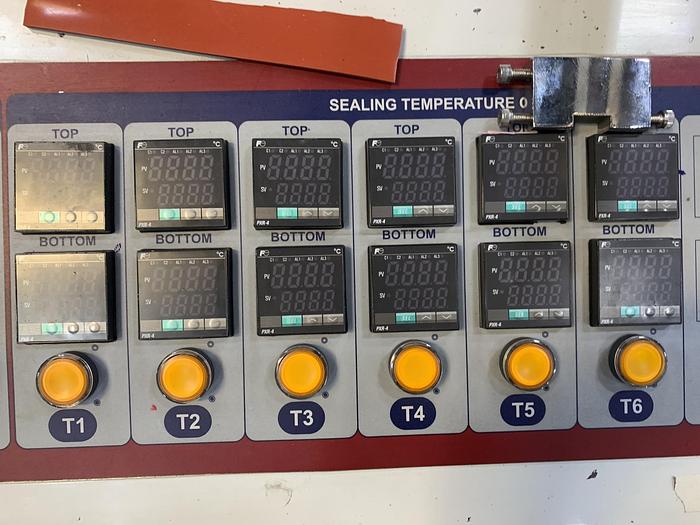

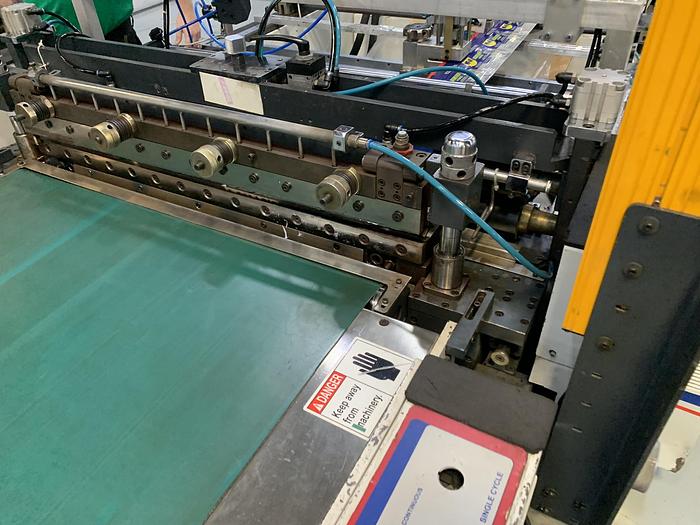

Double cut & heat seal

Angle/Delta case seal

Hole punch attachment

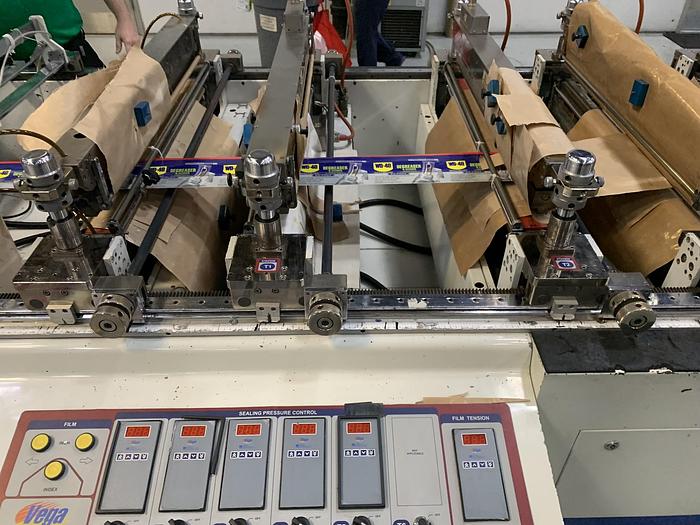

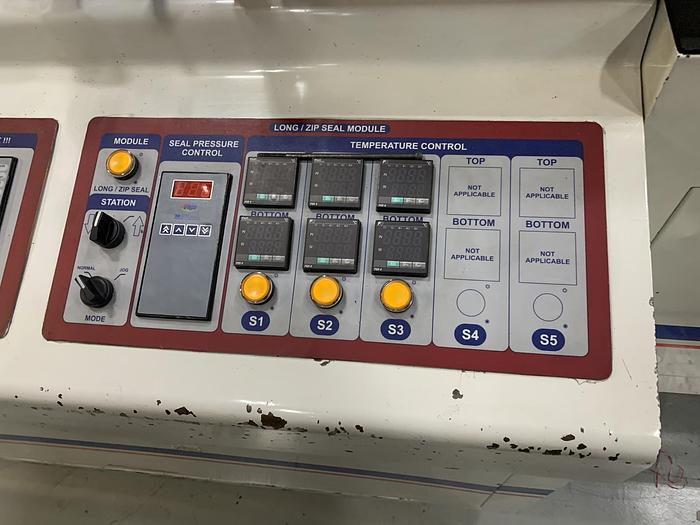

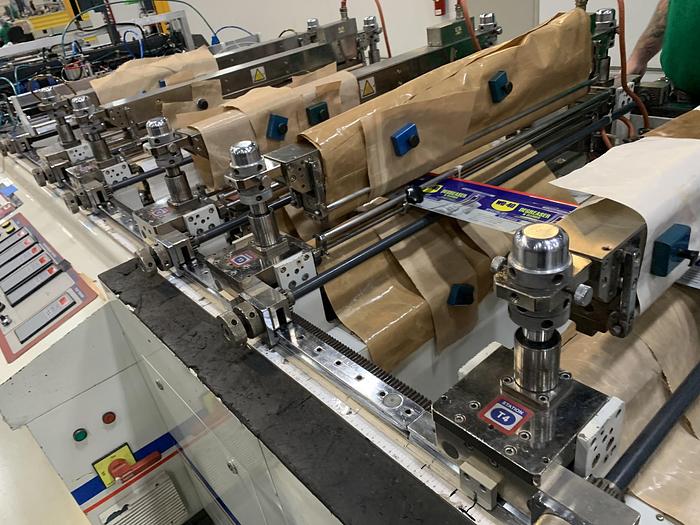

3 side seal stations

1 cooling station

Scrap winder

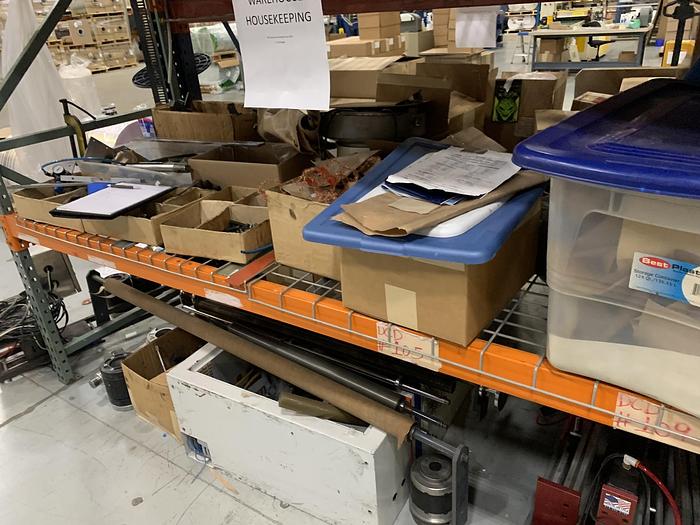

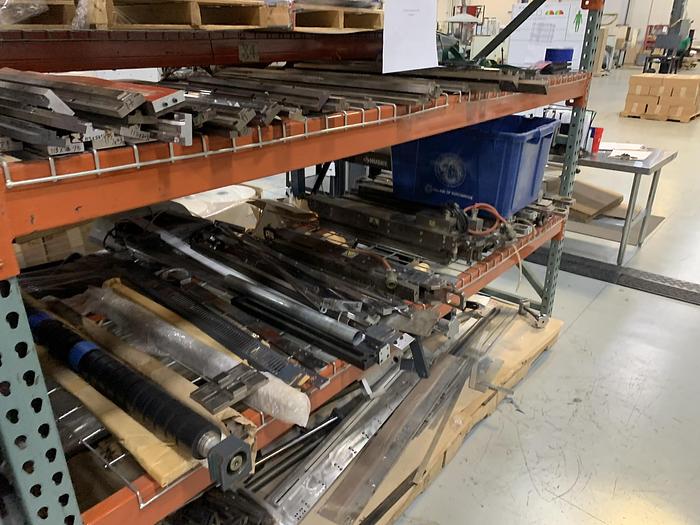

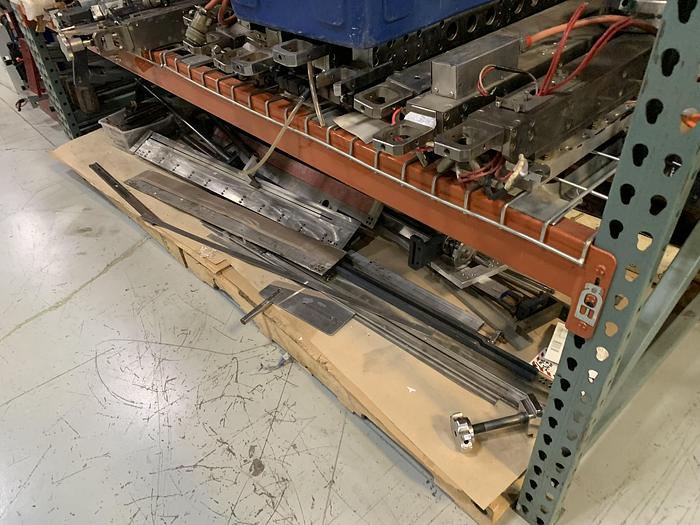

Some spare parts included.
