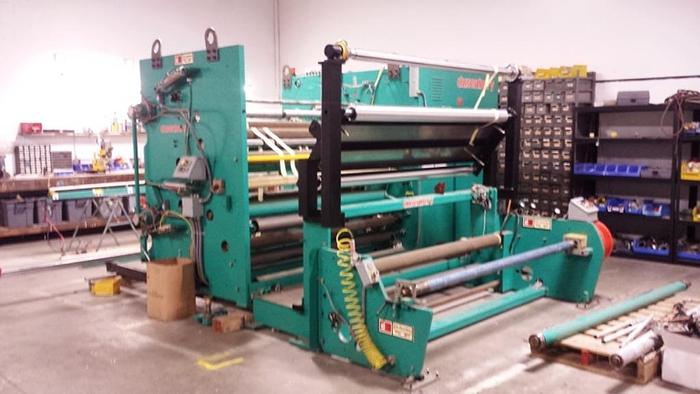

2000 DUSENBERY 335 TURRET

One (1) 72" Used Dusenbery Model 335 Duplex Turret Slitter.

Purchased in 2000.

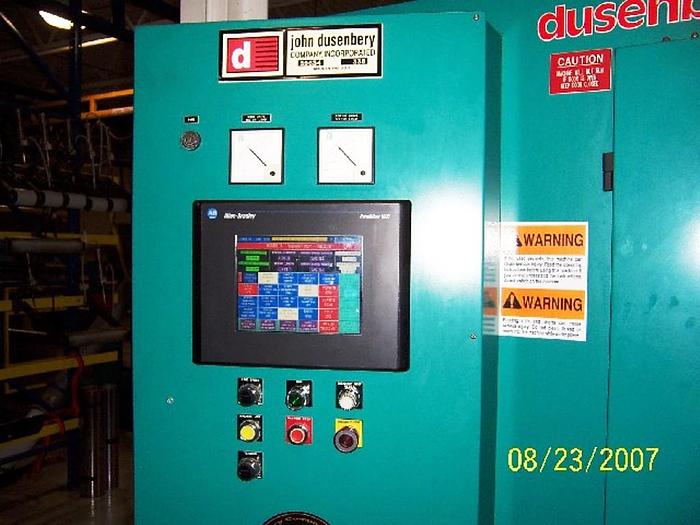

Two motor Eurotherm 590 Vector DC drive with an Allen Bradley SLC 500 and a Panelview 1000 Color touch

The unwind is equipped for 40" diameter rolls on either 3" or 6" cores. It is edge guided.

Dual position cantilevered turret rewind will handle a 24" diameter roll on Dusenbery's spacerless low co-efficient rewind mandrels.

Rolls are doffed onto an unloading tree for ease of operation.

1500 FPM and is a state of the art machine for high speed film converting

Floor plan; 15' x 15' x 7' high

Lower rewind position was modified for full web width rewinding and a roll pusher added, the pusher will handle a maximum roll weight of 300lbs.

The unload tree was also modified to accept a full roll web width

Splice table

Tidland class two male knife holders

Scrap winder
