63" WIDE KAMPF CONSLIT US 106 DUPLEX CANTILEVERED SLITTER REWINDER

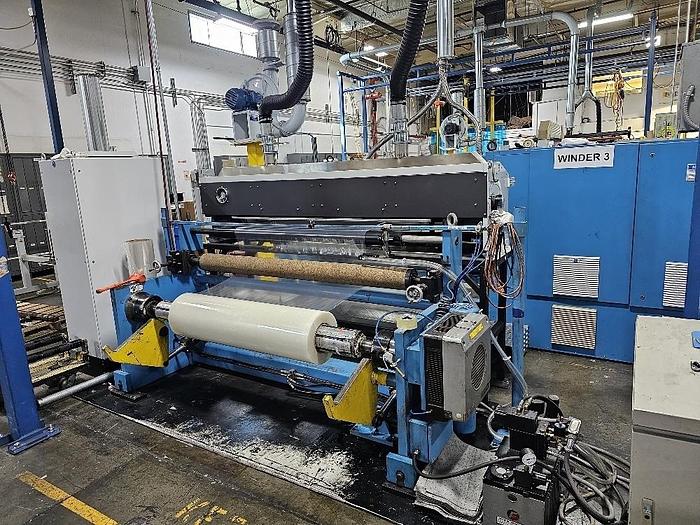

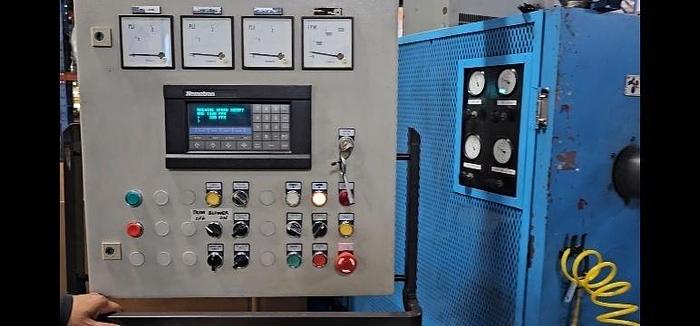

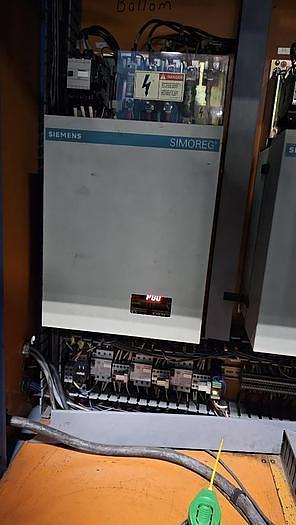

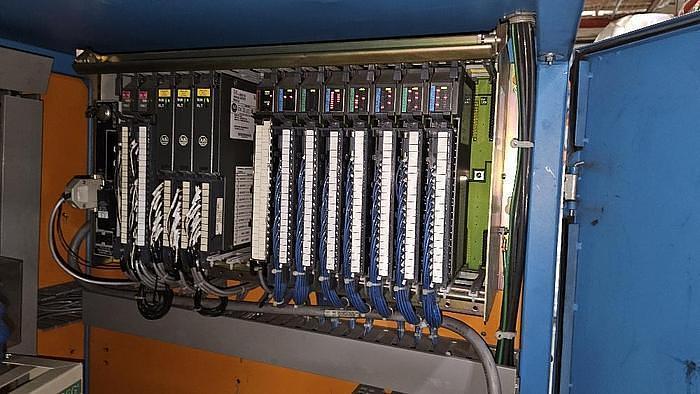

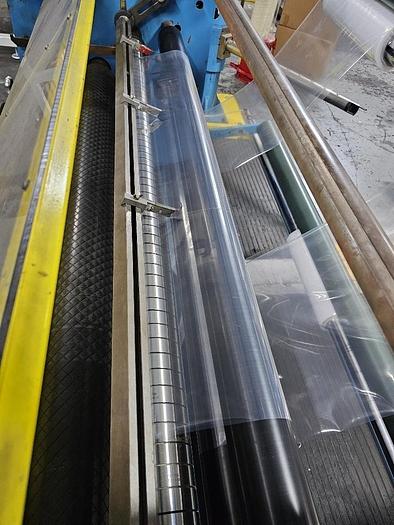

109732 Used 63” Wide 1993 Kampf Conslit US 106 Duplex Slitter Maximum unwind diameter: 40" One pneumatic 3” and 6” diameter unwind shaft. The unwind has an automatic fife edge guide with +/- 2” travel Hydraulic lift for the unwind roll. Automatic unwind tension control. Air cooled unwind brake. Razor in groove slitting; shear slitting also possible with correct tooling Maximum rewind diameter of 24”. The slitting section has 4 slit blade knife holders. The pull rolls and idlers are rubber covered with diamond cut. Automatic rewind taper/tension control Goldenrod direct friction air differential 3” rewind shafts. Top riding rolls are pneumatically loaded. Finished rolls are off loaded onto the doffing tree. Speeds up to 1500 FPM Main drive is 10HP and two 10HP rewind drives. Alen Bradley PLC with a operator interface through a key pad, LCD display. Included are all the backup programs and schematics/documentation this unit is still in daily use, can be seen running
