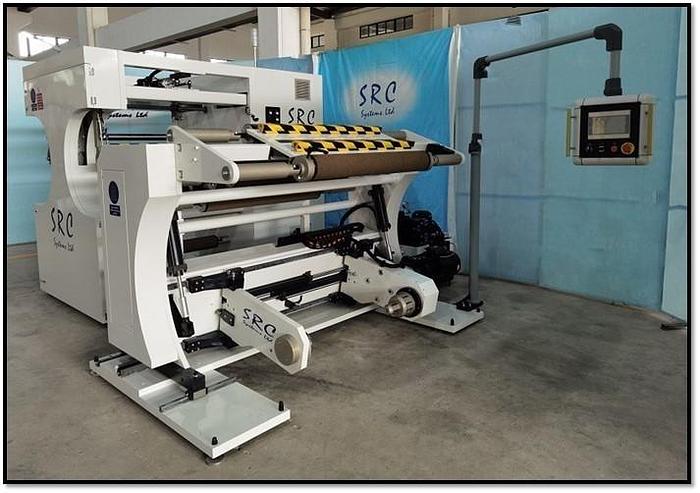

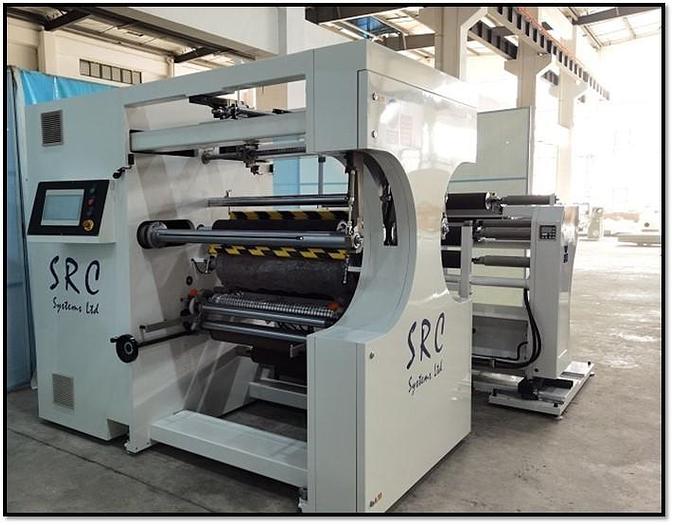

40" WIDE SRC SYSTEMS MODEL 1060CS DUPLEX CENTER SURFACE SLITTER

40" WIDE SRC SYSTEMS MODEL 1060CS DUPLEX CENTER SURFACE SLITTER

orCall +1 215-664-6016

Description

Maximum roll diameter: 40” Maximum roll width: 40” Minimum roll width: 14” Maximum roll weight: 1750 lbs Unwind drive motor: 7.5Kw AC inverter motor with 3:1 ratio gearbox and EtherCat network Core size: 3” + 6” Tension range: 10-100lbs Tension control: Automatic dancer arm Cam roller: First roller in the material web path fitted with eccentric cams that have +/- 3mm of movement Splice table: Table mounted above the parent roll; the splice table has 2 x independently controlled pneumatic clamps Guiding system with oscillation: BST Ekr500 guiding system with Ultrasonic sensor Guider travel: +/- 3” End of roll detector: Ultrasonic sensor monitors the parent roll diameter at all times Slitting type: Rotary shear, razor or score Minimum slit width: 1” Main drive roller: 250mm diameter rubber covered, diamond patterned driven roller with pneumatic nip Maximum machine speed: 1600 ft/minute (material dependent) Rewind type: Center Surface Maximum diameter: 25.5” (650mm) Maximum width: 31.5” (800mm) Rewind shafts: 2 x 3” aluminum removable air shafts Gap winding: Electro-pneumatic gap control Finished roll unloading: Cantilevered Rewind motors: 2 x 7.5Kw AC inverter motors with EtherCat network Rewind tension control: Automatic diameter build up with rewind arm position. Incorporates taper tension Main operator interface: 10” color touch screen with recipe system for up to 1000 individual jobs
Show All

Specifications

ManufacturerSRC SYSTEMS LTD.
Model1060CS
ConditionUsed
Stock Number200234
Maximum roll diameter40”
Maximum roll width40”
Minimum roll width14”
Maximum roll weight1750 lbs
Core size3” + 6”
Tension range10-100lbs
Tension controlAutomatic dancer arm
Cam rollerFirst roller in the material web path fitted with eccentric cams that have +/- 3mm of movement
Splice tableTable mounted above the parent roll; the splice table has 2 x independently controlled pneumatic clamps
Guiding system with oscillationBST Ekr500 guiding system with Ultrasonic sensor
Guider travel+/- 3”
End of roll detectorUltrasonic sensor monitors the parent roll diameter at all times
Slitting typeRotary shear, razor or score
Minimum slit width1”
Main drive roller250mm diameter rubber covered, diamond patterned driven roller with pneumatic nip
Maximum machine speed1600 ft/minute (material dependent)
Rewind typeCenter Surface
Maximum diameter25.5” (650mm)
Maximum width31.5” (800mm)
Rewind shafts2 x 3” aluminum removable air shafts
Gap windingElectro-pneumatic gap control
Finished roll unloadingCantilevered
Rewind motors2 x 7.5Kw AC inverter motors with EtherCat network
Rewind tension controlAutomatic diameter build up with rewind arm position. Incorporates taper tension
Main operator interface10” color touch screen with recipe system for up to 1000 individual jobs
