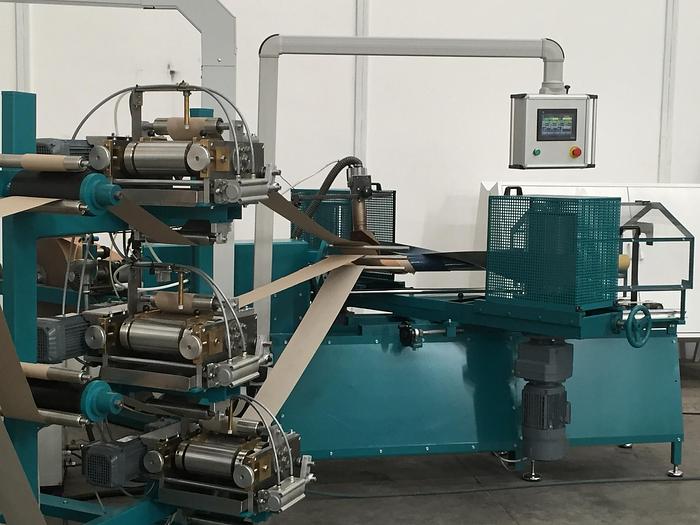

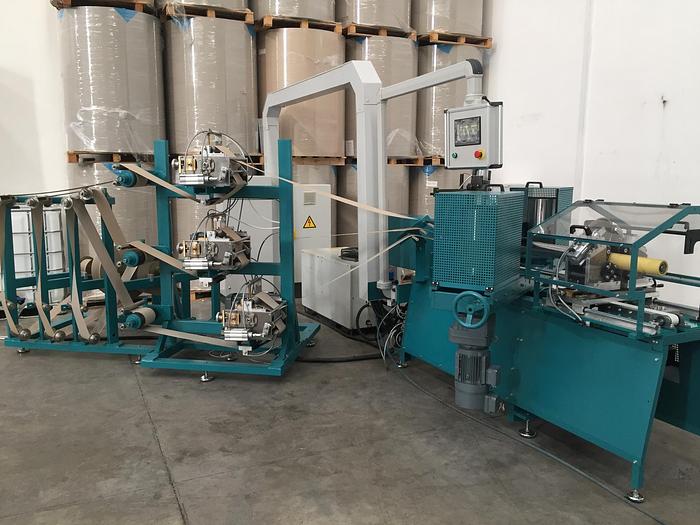

COMPOSITE CAN SPIRAL WINDING MACHINE 82FPM REBUILT 2020
No longer available
COMPOSITE CAN SPIRAL WINDING MACHINE 82FPM REBUILT 2020
Description
109389
Used Composite Can Spiral Winding Machine for sale
Complete with Anaconda System
82 FPM
2mm wall thickness
3 layer motorized cardboard precision roller gluing system and servo controlled flying knife system
Winding Mandrels chromium-plated ( 52 mm.- 60 mm.- 65 mm.-73 mm.-84 mm.- 86 mm.- 90 mm.- 99 mm.- 116 mm. – 153 mm. )
Sew EuroDrive winding drum drive. ( Two synchronous drive )
Omron Controller
Operator touch panel with swivel arm. ( with English software )
Cooling execution of winding mandrel.( With the double-walled helix copper system, the machine reaches the desired coldness value within 30 seconds from panel starting )
Cooling Unit ( MTA / Italy )
Unreeling Stand for the unreeling of three paper plies
3 web brake control units ( manually adjustable with lining brake system )
3 Double Roller Single Glue Units inc. web take-up device, glue level control and automatic refill,
execution as gap gluing unit with membrane pump with glue distribution for the glue supply from the glue container.
Sew EuroDrive glue rollers drive with integrated into machine speed automatically.
Single Unreeling Stand for liner includes 1 automatic web tension control at a continuous web unreeling by the winding
machine. ( Christian Majer / Serial No: 07/316/2008 )
Foil folding gluing device to apply glue onto the fold of internal web.
Membrane pump to supply glue to the above foil folding gluing unit from a glue container.
Internal Web Lubrication With Rollers. To apply oil on the basic web by means of rollers.
The rollers are motor-driven, speed is controlled depending on web speed.
Anaconda Heat Sealing Device for folded inner seam with (2) hot air guns and compressed air. ( Christian Majer / Serial No: 07/316/2008 )
Anaconda Heat Sealing Device Control Cabin with Siemens Simatic Panel.
Spare ceramic air ducts. ( 3 pcs. )
Flying Knife Cutter with integrated into machine speed automatically.
All the air pneumatic system and related pistons used on the machine are Festo.
Specifications
Manufacturer | COMPOSITE CAN |
Model | WINDING SYSTEM |
Condition | Used |
Serial Number | 07/316/2008 |
Stock Number | 109389 |
Machine. ( christian majer / serial no | 07/316/2008 ) |
Anaconda heat sealing device for folded inner seam with (2) hot air guns and compressed air. ( christian majer / serial no | 07/316/2008 ) |
